Clinical Diagnostics

Clinical diagnostics refers to the process of identifying diseases, conditions, or health issues in patients through various medical tests and examinations. This includes a wide range of techniques, such as laboratory tests, imaging, and physical assessments, to evaluate a patient’s health and provide accurate diagnoses. Clinical diagnostics plays a critical role in early disease detection, guiding treatment decisions, and improving patient outcomes. By utilizing advanced technologies and methods, healthcare providers can ensure precise, timely, and personalized care. These diagnostics are essential for monitoring disease progression, evaluating the effectiveness of treatments, and preventing further health complications.

Clinical Lab Product Range

Fully Automatic Biochemistry Analyser

3-part differential hematology analyzer

5-part differential hematology analyzer

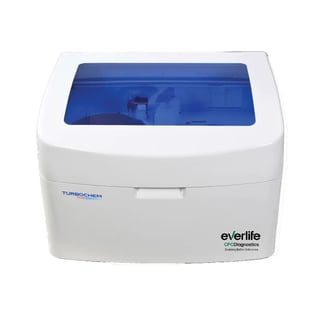

Turbochem Prime

• Constant throughput of 180 Tests/hour
• Discrete random access Bench Top Biochemistry analyzer
• Probe crash prevention with high sensitive liquid level detection of sample/reagents
• High precision results with Low CV%
• On board laundry with 5 statges of washing
• Intelligent QC management
• 60 Reagent position assures that the more no.of assays could be performed
• Bidirectional LIS connectivity
• Minimal consumable cost for instrument maintanence
• Remote maintanence, interactive trouble shooting with online application support

i3LAB

• 3-part differential hematology analyzer that provides a 22-parameter complete blood cell count report.

• Possible to measure from capillary samples

• Volumetric impedance method for detection of red blood cells (RBC) and white blood cells (WBC) and photometric method for the measurement of hemoglobin (HGB) levels

• 80 tests/hour throughput

• Compact size

• Extremely low reagent consumption – using only diluent and lyse

• Reagent packs are available for 100 and 1000 tests

• Smallest sample volume processing – 2* 1.4µL processed whole blood

• 10.1” LCD touch screen – easy to use, straightforward navigation

• Minimal user maintenance actions needed

• Remote Access – a convenient online diagnostic tool

• Advanced barcode and QR code reader

• LIS connectivity

Icon 5

• 5-part differential hematology analyzer that provides a 27-parameter complete blood cell count report

• Closed sampling mode

• Possible to measure from capillary samples

• Laser-based forward-scattered light method for the differentiation of white blood cells (WBC), volumetric impedance method for detection of red blood cells (RBC), and photometric method for the measurement of hemoglobin (HGB) levels

• Compact size – the smallest hematology analyzer ever manufactured

• Extremely low reagent consumption – 75% less compared to other analyzers on the market

• Reagent packs are available for 100 and 400 tests

• Smallest sample volume processing – 2* 1.4µL processed whole blood

• 10.1” LCD touch screen – easy to use, straightforward navigation

• Minimal user maintenance actions needed

• Remote Access – a convenient online diagnostic tool

• LIS connectivity

Chemiluminescence Immunoassay Analyzer

Electrolyte Analyzer

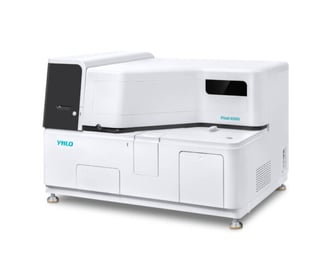

YHLO IFlash 1200

• iFlash 1200, a chemiluminescence immunoassay analyzer that offers fully automated immunoassay analysis using Magnetic particle-based Direct Chemiluminescence technology.

• With a high throughput of up to 120 tests per hour and a first result available in just 13 minutes

• iFlash 1200 is one of the fastest and most efficient immunoassay analyzers available on the market.

• Continuous STAT sample loading capacity with 16 sample positions.

• Continuous reagents loading capacity with 15 reagent positions.

• Continuous loading of reaction vessels with a capacity of 500 cuvettes.

• iFlash 1200 uses Acridinium Ester Labeled Direct Chemiluminescence for highly accurate and reliable results.

• Ready-to-use reagents in convenient 2 x 50 tests pack size for simplified testing.

• iFlash 1200 is an innovative and versatile immunoassay analyzer that is perfect for laboratories that require high throughput and rapid turnaround times.

EXIAS eI1 Analyser

• Measures Na+, K+, Cl-, Ca2+ as well as pH and Hct, in whole blood, serum, plasma and urine (undiluted).

• High accuracy, ease of use and the maintenance free system underline the operational functionality and outstanding performance.

• Robust and clever design combined with a compact footprint make the e|1 Analyzer well suited for both point-of-care environment and laboratory.

• Flexible sample input sample tube, capillaries, syringes

• All-in-one cartridge 150 samples / 42 days, 300 samples / 42 days, 600 samples / 28 days

• lowest sample volume 20 µL, fastest system 25 sec

• oQC on-board quality control (oQC), 3 level

• Calibration time 30 sec. for 2-point calibration Interval: 4, 8, 12 hr

• Touch display 7’’ / 800 x 480 px,

• Printer Built-in thermal printer

• Maintenance free cartridge includes Sensors, solutions, waste All wear & tear parts like tubings, sample input and valves etc

• Data exchange with LIS according to LIS2-A2 protocol (ASTM)

• Export of data to USB flash drive (results, settings, etc.)

• Network connection via LAN (RJ45)
